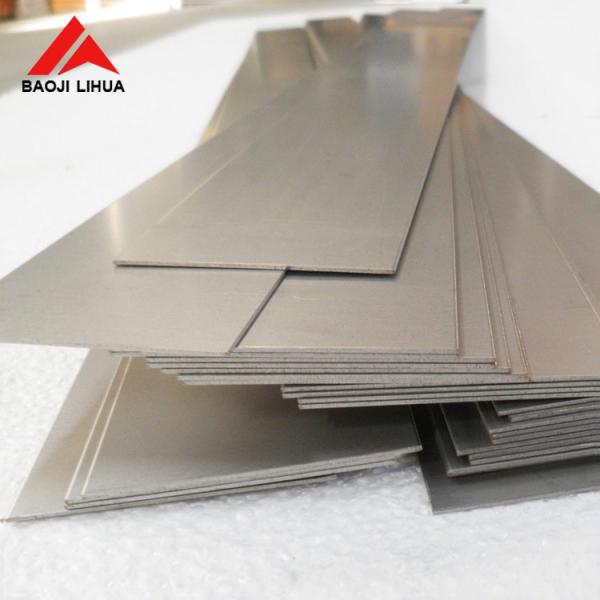

ASTM B265 Gr2 titanium flat sheet plate 1mmx100mmx2000mm polished surface
1. Product Information
Product name:Gr2 titanium plate
Specification: δ1.0mm, 3.0mm, 6.0mm, 10mm, 12mm, 15mm 16mm, 20mm,25mm,30mm,35mm etc.
Grades: TA2 / GR2, TA4 / GR4, TA1 / GR1, TC4 / GR5, TA9 / GR7, TA10 / GR12
Standard: ASTM B265
Process flow: Use high-quality sponge titanium, smelting ingot more than 2 times,
forging and hot-rolling, hot-rolling, selecting rolling method according to the product,
rolling to the finished product size, and finally flattening the sheet to finish the finished sheet.
Physical properties: The tensile strength of the Gr2 titanium sheet is> 450Mpa,
the yield value is> 360Mpa, and the elongation after breaking is> 30%.
Quality supervision: starting from the sponge titanium composition inspection, the upper,
middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic
non-destructive inspection is performed to ensure the quality of the ingot. Physical performance
test to ensure product performance.
Third-party testing institutions: SGS, TUV, BV etc.
Product advantages: Gr2 titanium has good plasticity, excellent forming properties, and
is easy to weld. High temperature working temperature can reach 300 ℃
.
Titanium plate application eares: chemicals, machinery and equipment, electroplating
equipment, environmental protection equipment, electronics, watches and clocks, glasses,
jewelry, sporting goods, golf and precision processing industries.
| Chemical Composition(%wt) | Ti | Fe(max) | C(max) | N(max) | H(max) | O(max) | The others |
| Gr2 | Remainder | 0.30 | 0.10 | 0.05 | 0.015 | 0.25 | <=0.4 |
| Physical properties(min) | Σb
Tensile Strength
(Mpa) | σr0.2
Yield Strength
(Mpa) | δL0+50mm
Elongation
(%) | ψ
Reduction of area
(%) |
| | 400 | 275 | 25 | / |
Titanium plate/sheet in stock:
Thickness(0.5mm-0.7mm)*Width≤1000mm*L≤2000mm
Thickness(0.8mm-4.0mm)*Width≤2000mm*L≤6000mm
Thickness(5.0mm-50mm)*Width≤2000mm*L≤6000mm
Thickness(60mm-100mm)*Width≤2000mm*L≤6000mm
2. Advantages of Titanium Materials
| Characters of Titanium |
| 1. High Strength | Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears. |
| 2. Anti-Corrosion | Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid. |
| 3. High-Temperature Resistance | Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃ |
3. Detailed Images
4. FAQ
Q1.--How can you ensure the product quality?
--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the
MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
05.--What is the necessary information for a inquiry?
--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
5. Quality Assurance
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
