Round Forged Gr5 Titanium Metal Rods 3mm - 350mm Diameter

Brand Name : LHTi

Model Number : Titanium Rod

Certification : ISO9001:2015; TUV; SGS;BV

Place of Origin : China

MOQ : 30 kg

Price : $20.00~$30.00/kg

Payment Terms : T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability : 300000 kg per month

Delivery Time : 10-25 work days

Packaging Details : Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.

Diameter : 3mm-350mm

Material : Pure titanium

Surface : Bright,Polished,Pickling

Condition : Annealed; M

MOQ : 30 kg

Packing : Standard Export Packing

Contact Now

Forged gr5 titanium metal rods

Industrial titanium bar is divided into three grades GR1, GR2 and GR3 according to their impurity content. The interstitial impurity elements of these three types of industrial pure titanium are gradually increased, so their mechanical strength and hardness also increase gradually, but the plasticity and toughness decrease accordingly.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal


Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18


Item Name Titanium bar/titanium rod
Standard ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material Gr1 Gr2 Gr3 Gr4 Gr5
Diameter 0.8~500mm
Length 500~6000mm or according to customers' request
Product Status Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape Round bar, square bar , hex bar
Feature

1.Polished surface without any defects free from cracks no pittings
2.Two ends flating making sure length torlerance and good looking
Certificate ISO9001:2015, TUV, material test certificate acc EN10204.3.1

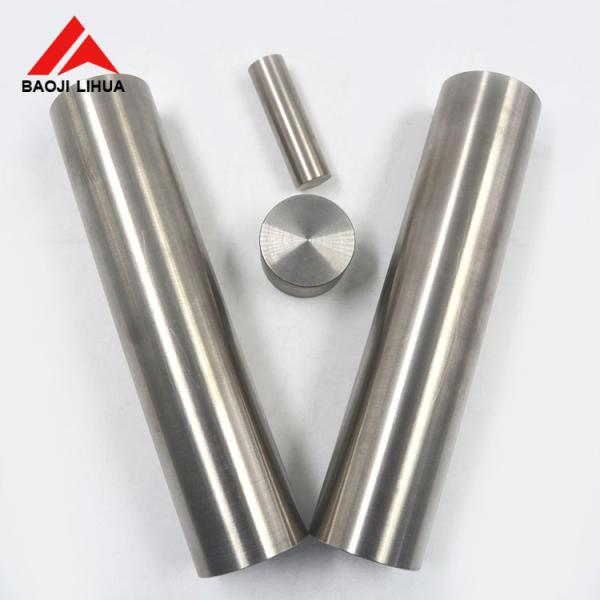

Product picture:

Round Forged Gr5 Titanium Metal Rods 3mm - 350mm Diameter
